Tanzania Large Cattle Barn Steel Structure Project: Engineering Features and Advantages

As modern livestock farming continues to develop in Tanzania, large-scale cattle farms are increasingly looking for building solutions that combine structural strength, durability, ventilation, temperature control, and low long-term maintenance costs. For farms located in remote areas, these requirements become even more important because regular maintenance, repainting, and repair work can be difficult and expensive.

Derun Steel Structure recently completed the design and supply of a large steel structure cattle barn project in Tanzania. Designed for modern beef cattle and dairy cattle farming, the project adopts a large-span, column-free portal frame system and combines hot-dip galvanized steel structures, natural ventilation, reflective roofing, and practical rainwater protection features.

The project uses more than 300 tons of structural steel and approximately 13 shipping containers for transportation. The complete steel structure system was designed with the specific environmental and operational requirements of a Tanzanian livestock farm in mind.

Project Overview

The Tanzania cattle barn is a large-scale steel structure livestock building designed to provide a durable and well-ventilated environment for cattle while keeping construction and long-term maintenance costs under control.

The main structural system is a large-span portal frame steel structure without interior columns. Compared with traditional buildings with multiple internal supports, the column-free layout provides a more open internal space. This is particularly useful for cattle housing because it allows greater flexibility for animal movement, feeding areas, cleaning operations, equipment installation, and future changes to the farm layout.

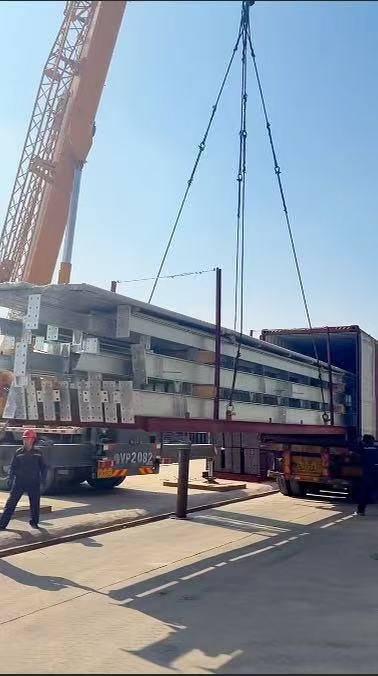

The total steel consumption for the project exceeds 300 tons, covering the main steel frames and secondary structural components. The steel members were engineered for transportation in approximately 13 shipping containers, helping facilitate international logistics to the Tanzanian project site.

One of the most important features of this project is the extensive use of hot-dip galvanized steel. The main steel frames, secondary members, and connection components are designed to provide strong resistance to corrosion and reduce the need for frequent on-site maintenance.

For livestock farms in remote locations, this can be a major advantage. Conventional painted steel structures may require periodic inspection, repainting, and surface repair. In contrast, a properly designed hot-dip galvanized steel building can significantly reduce routine maintenance requirements.

Large-Span Portal Frame for a More Flexible Cattle Barn

The main building uses a large-span portal frame system with no internal columns. This structural arrangement creates a wide and unobstructed interior space, which is highly suitable for large cattle housing facilities.

An open interior can make daily farm operations more convenient. Feeding equipment, cattle pens, drainage systems, ventilation arrangements, and other livestock facilities can be positioned according to the farm's actual requirements without being restricted by numerous interior structural columns.

The large-span design also makes the building easier to adapt to different livestock management systems. Whether the facility is used primarily for beef cattle, dairy cattle, or a combination of different livestock areas, the open structural layout provides greater flexibility for internal planning.

For large agricultural buildings, structural efficiency is also an important consideration. The portal frame system provides a practical balance between structural performance, construction efficiency, usable space, and material consumption.

Hot-Dip Galvanized Steel for Long-Term Durability

The Tanzanian project uses hot-dip galvanized treatment for the steel frames and secondary structural components.

All major steel components, including the main frames and secondary members such as steel purlins, horizontal bracing, cross bracing, and tie rods, are galvanized to improve corrosion resistance. High-strength hot-dip galvanized bolts are also used for structural connections.

This approach is particularly suitable for livestock buildings because the internal environment can contain moisture, dust, and ammonia generated by animal waste. If steel components are inadequately protected, corrosion can become a long-term concern.

Hot-dip galvanizing provides a protective zinc coating over the steel surface and helps protect structural members against atmospheric corrosion. By using galvanized steel throughout the structural system, the project reduces dependence on regular painting and surface maintenance.

For a remote farm in Tanzania, minimizing maintenance requirements can have significant practical value. Access to professional painting crews, equipment, and replacement materials may be limited compared with urban construction projects.

With proper structural design, fabrication, galvanizing, installation, and site conditions, the expected service life of the building can reach approximately 20–25 years or more, while actual service life depends on the local environment, usage conditions, installation quality, and maintenance practices.

Practical Roofing Design for a Hot Climate

The roofing system is another important part of the cattle barn design.

The project uses an economical 900-profile high-weather-resistance color-coated steel roofing sheet with an aluminum-zinc coated steel substrate. The light-colored surface finish, in white and light gray tones, helps reflect solar radiation and reduce heat absorption by the roof.

For cattle housing in a warm climate, roof design is directly related to the indoor thermal environment. Excessive solar heat entering through the roof can increase indoor temperatures and create additional heat stress for livestock.

The light-colored roofing surface is therefore used as part of the overall passive temperature-control strategy. Rather than relying entirely on mechanical cooling equipment, the building combines reflective roofing with natural ventilation to improve the indoor environment.

The roof slope is designed at approximately 18–22 degrees, providing efficient rainwater drainage. This is especially important in regions that experience heavy seasonal rainfall. A suitable roof pitch allows rainwater to drain rapidly and helps reduce water accumulation on the roof.

The roof also extends approximately 600–900 mm beyond the external wall line. The extended eaves provide additional protection from direct sunlight and heavy rain, helping keep the lower wall areas and cattle circulation zones more comfortable during adverse weather.

Continuous Ridge Ventilation for Better Airflow

One of the key heat-control features of the cattle barn is the continuous ridge ventilation opening.

Hot air naturally rises. By providing a continuous ventilation opening along the roof ridge, warm air can escape from the highest point of the building. At the same time, fresh outdoor air can enter through the naturally ventilated sides of the cattle barn.

This creates a passive airflow path without relying entirely on mechanical ventilation equipment.

Natural ventilation is particularly valuable for large livestock buildings because the internal environment is continuously affected by animal body heat, moisture, and gases generated by manure. A well-designed airflow system can help reduce heat accumulation and improve overall air movement.

For cattle housed in a hot climate, improved ventilation can contribute to a more comfortable environment and help reduce heat stress.

Open-Side Design Helps Reduce Ammonia Concentration

The side walls of the building are not fully enclosed. Instead, the lower section incorporates approximately 1.2–1.5 meters high concrete dwarf walls, while the upper side areas remain open for natural ventilation.

This combination provides several practical advantages.

First, the concrete low wall creates a durable lower barrier that can withstand daily cleaning, animal activity, and impact better than lightweight wall materials. It can also help separate the livestock area from surrounding ground conditions.

Second, keeping the upper side areas open allows outdoor air to move freely through the cattle barn. Cross ventilation helps remove heat, moisture, and unwanted odors from the interior.

Third, better natural air exchange can help reduce the concentration of ammonia and other gases associated with livestock manure. Maintaining sufficient ventilation is an important part of creating a healthier and more comfortable livestock environment.

The open-sided concept is therefore not simply an economical wall solution. It is an integral part of the building's passive ventilation and livestock climate-control strategy.

Designed for Remote Agricultural Locations

One of the most important considerations behind this project is its location.

Large cattle farms are often developed outside major cities, where access to maintenance services and construction resources can be limited. For such projects, initial construction cost is important, but long-term operating and maintenance requirements are equally important.

The use of hot-dip galvanized steel helps address this challenge.

Instead of depending heavily on regular repainting to maintain the structural steel, the galvanized structural system provides long-term corrosion protection. This can reduce maintenance frequency and make the building more suitable for remote agricultural applications.

The modular nature of a prefabricated steel structure also provides advantages during transportation and installation. Steel components can be fabricated and prepared in advance, transported to the project site, and assembled according to the engineering drawings.

This approach can help improve construction efficiency and reduce the amount of complicated structural work required on site.

Key Engineering Advantages of the Tanzania Cattle Barn

The Tanzania large cattle barn demonstrates several advantages of modern steel structure construction for livestock facilities:

1. Large column-free interior space
The portal frame design provides an open interior layout, making the building suitable for cattle housing, feeding systems, livestock management, and future modifications.

2. Strong corrosion protection
Hot-dip galvanized main frames, secondary members, and high-strength galvanized bolts provide comprehensive protection against corrosion.

3. Reduced long-term maintenance
The galvanized steel system is particularly suitable for remote farms where regular painting and maintenance can be difficult.

4. Effective natural ventilation
The open-sided building design and continuous ridge ventilation help improve air circulation without relying entirely on mechanical ventilation.

5. Better hot-climate performance
Light-colored aluminum-zinc coated roofing helps reduce solar heat absorption, while the ridge vent and open sides facilitate the removal of hot air.

6. Protection against heavy rain and sunlight
The 600–900 mm extended eaves provide additional protection from direct sunlight and heavy rainfall.

7. Efficient rainwater drainage
The 18–22° roof slope helps rainwater flow quickly away from the roof surface.

8. Livestock-friendly environment
The combination of natural ventilation, open space, heat-control measures, and concrete low walls creates a practical environment for modern beef and dairy cattle farming.

A Reliable Steel Structure Solution for African Livestock Projects

The Tanzania cattle barn project reflects Derun's approach to agricultural steel structure engineering: the building should not only be structurally strong, but also respond to the actual climate, farming practices, transportation conditions, and long-term maintenance requirements of the project location.

For large livestock buildings in Tanzania and other African markets, factors such as high temperatures, seasonal rainfall, ventilation, corrosion protection, logistics, and maintenance accessibility should be considered during the early design stage.

A properly engineered steel structure can provide an efficient solution by combining a large-span structural system with durable corrosion protection and passive environmental-control measures.

The Tanzania project, with more than 300 tons of structural steel, hot-dip galvanized components, approximately 13 shipping containers, reflective roofing, continuous ridge ventilation, extended eaves, and open-sided natural ventilation, demonstrates how a modern steel cattle barn can be designed around the actual needs of large-scale livestock farming.

For investors, farm owners, contractors, and agricultural developers planning a steel structure cattle barn, dairy farm building, beef cattle shed, livestock housing facility, or large-span agricultural building in Tanzania or other African countries, an engineered steel structure solution can provide a practical combination of durability, flexibility, ventilation, and long-term value.

Derun Steel Structure can provide customized steel structure solutions based on project size, local climate, livestock requirements, site conditions, transportation needs, and installation requirements.
